Description

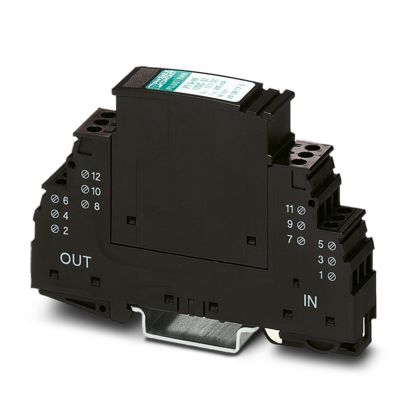

Phoenix Contact PT 5-HF-12DC-ST: Surge Protection Plug
Based on the provided link, the product is a surge protection plug, not a cable. The PT 5-HF-12DC-ST is a protective device for information technology systems, designed to safeguard sensitive equipment from transient overvoltages. It features a high-frequency (HF) protective circuit for four signal wires and requires a compatible base element for installation.
Key Features
- Protection Circuitry: It has an HF protective circuit specifically for four signal wires.
- Electrical Ratings: The device has a maximum continuous operating voltage of 14 V DC and a rated current of 450 mA.
- Housing and Durability: The housing is made of PA 6.6 with a flammability rating of V-0 (UL 94), providing an IP20 degree of protection. It operates in ambient temperatures from -40 °C to 85 °C.
- Connectivity: It features a screw connection with an M3 screw thread and can accommodate conductor cross-sections from 0.2 mm² to 4 mm².
Applications
The Phoenix Contact PT 5-HF-12DC-ST is specifically designed for:
- Information Technology: It is used to protect equipment within information technology systems from surges.
- Signal Lines: The device is suitable for safeguarding up to four signal lines with a nominal voltage of 12 V DC.
